Part 2: Modern Addition and Renovation to Classic Village Ranch- AFTER

To read Part 1 of this Post (and see the BEFORE photos and demolition floor plan) click on this link:

To solve some of the issues and meet the needs of the current family living here, I designed a  17' x 32' single floor addition on the northeast side of the house. I set it 29' back from the front wall of the current house, so the front room would have more privacy from the street, and so the new master bedroom could have a door leading to the existing back deck. In addition, this "recessed" placement allowed for a new side entry door that one day can lead to a detached garage or carport in the right side yard. (A covered place for parking the car was part of the original design and a reason they hired me, but the owners decided not to build it at this time)

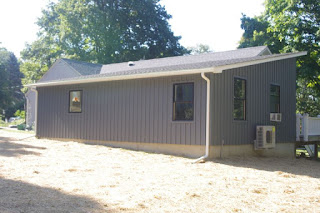

Larger windows toward the back (see new A/C heat pump)

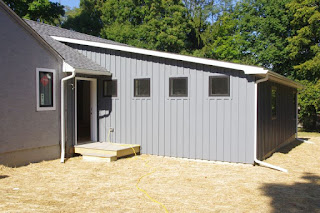

New Addition w/ vertical dark gray siding and Ebony Windows
Since the exterior of the house (built in stages) was already a variety of different materials and not really matching, I decided it would be fun for the exterior form, color, and materials of the addition to be different as well and more contemporary. Instead of a more traditional gable roof, I designed the new roof to be a low-pitch shed that lays atop a side of the existing gable roof on the back. I used a dark color (to further recede) of vertical "board and batten" style siding and windows clad in black to add to the modern aesthetic.

New Addition - Back View
The new space has two bedrooms and 3 large walk-in closets. (A lack of adequate storage space is a typical issue with older homes.) The ceiling in the new rooms soar upward to follow the slope of the roof-line. (Changing ceiling height is a great way to vary space - especially here in a ranch home where all spaces had the same flat ceiling height.) High, square windows dot along the front elevation, with larger windows on the more private side and back of the house. A a glass door with a transom window above is located in the highest wall at the back of the master bedroom to connect to the deck. An exposed engineered wood beam supports the long roof rafters above that door at 10' above the floor, adding some interest.

Master Bedroom w/ exposed beam, vaulted ceiling, & door to deck
Part of the existing interior area of the home was demolished and renovated. The large wheel-chair accessible bathroom (14.5' x 12.5') and small bedroom closet were removed and all that space was incorporated into the back room, which will be used as a family room. With that room getting so much bigger, I could cut off the north corner of it and make that space into a new beautiful bathroom for the 2 new bedrooms to share.
Family Room (same glass door to same deck as in before pics - but room is a different shape

The existing front room (that at one point was a garage) changed use to become a home office with a large storage closet for files. The out-dated small bathroom behind that room became a new half-bath (and got a window) off the family room space and near the new side entry. A coat closet and relocated laundry is tucked behind a pocket door off a new connecting service hall helping the flow of how one can get from one space to another. In my designs I work to layout hallways and doorways to make interior views that line up with windows for views and light. This makes spaces feel larger and more inviting. This project shows that adding just a little space, but re-configuring it to work better, can make a big difference in a small home.

Laundry -moved to service hall
Entry Hall- more open & uncluttered

New window in powder room adds light
New "service" hall connects front to back

Master Bedroom door to deck in high wall- transom above adds light and a unique feature
View down hall from new Master Bedroom aligns with square window facing the street
